10 Sheets Notebook Making Machine 1020mm Max. Printing Width

Machine description

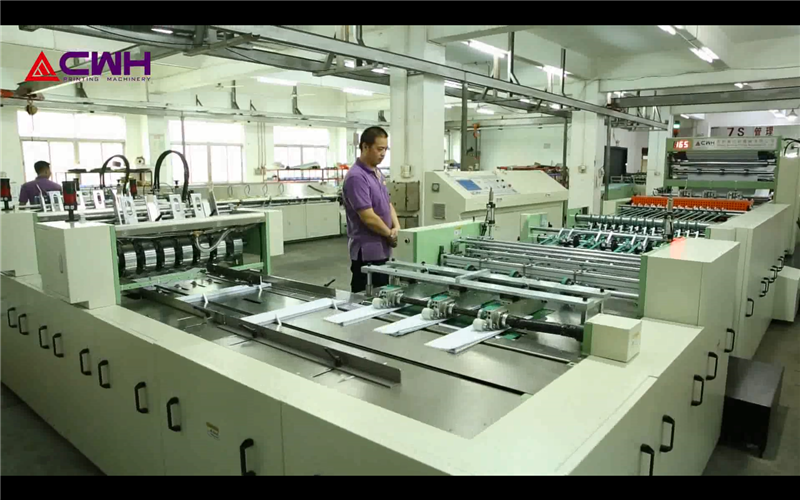

Glue bound notebook production line AFPF-1020C-P2, is a fully automatic production line for cold glue bound notebook, including office use notebook, school student use notebook, etc.

1. Reel feeding unit

2. Reel auto tension web alignment balancing

3. Water base flexo ruling. The 4-groups of metal webbing distributor rollers in the printing section realize 2 colors printing on double sides, using timing belt to make sure printing accuracy.

4. Perforating & Slitter. CNC liner dovetail groove structure is adpoted so it is very convenient to adjust the size of notebook. Imported blades are the first option to ensure they are durable and reliable.

5. Folding

6. Sheeter

7. Sheet counter and collector

8. Overlapping

9. Index page inserting

10. Cover page inserting. Cover inserting feeder, it ensures paper running stably at high speed. It saves the labor resource, reduces the machine working time when stop for replace outer and improve the work effect of whole production line.

11. Jogging

12. Gluing.

12-1 Cover separation. The cover separation device is located at the front of the glue conveyor, adpoted the mini-cylinder and pneumatic sucker sucks the back cover page and top cover page and synchronized with the rubber chain. After entering the guide groove,the sucker is returned by the pen-type linear cylinder to complete the layout of a cluster block.

12-2 Cold glue padding

13. Drying

14. Spine tape binding.

15. Spine tape cutting.

16. Three side trimming.

17. Counting and collecting.
